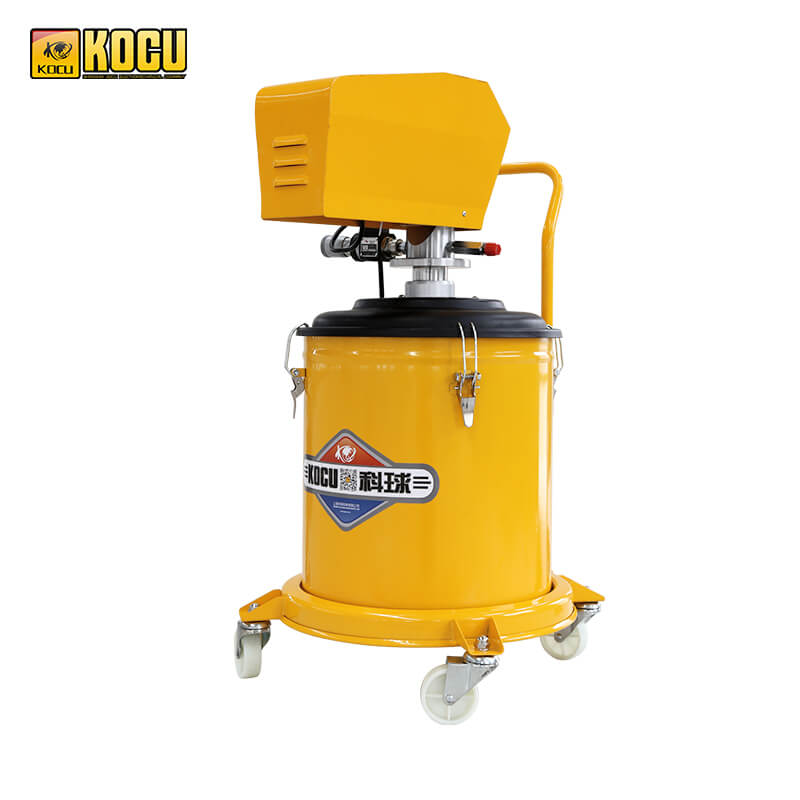

| Model: GZ-D2 | ||
| Outlet pressure: 20Mpa | ||
| Reduction rate: 10: 1 | ||
| Power: 250W | ||
| Power supply: 220V/380V | ||
| Flow rate: 0.5L/Min | ||
| Volume: 30L | ||
| Weight: 32.75kg | ||
| Packing size: 540*445*830mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

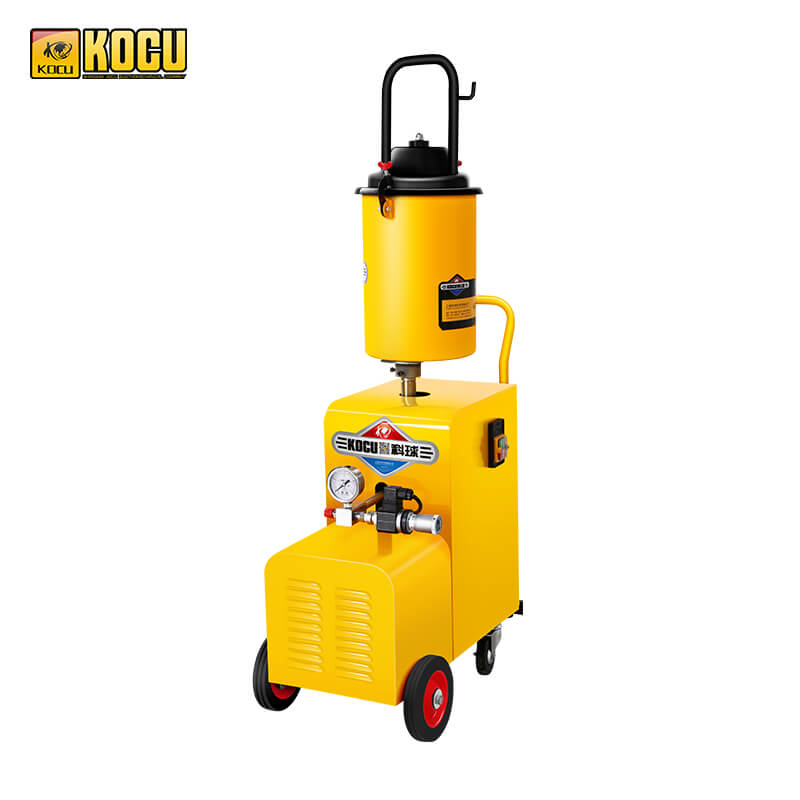

| Model：GZ-D1 | ||
| Outlet pressure：20-35Mpa | ||
| Power：750W | ||
| Electric supply：220V/380V | ||
| Flow rate：0.7L/Min | ||
| Volume: 12L | ||
| Weight：Single phase67Kg/Three phase66Kg | ||
| Packing size：380*720*910mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |
| Model: GZ-A9 | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 30L | ||
| Weight: 19.9Kg | ||
| Packing size: 455*455*750mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

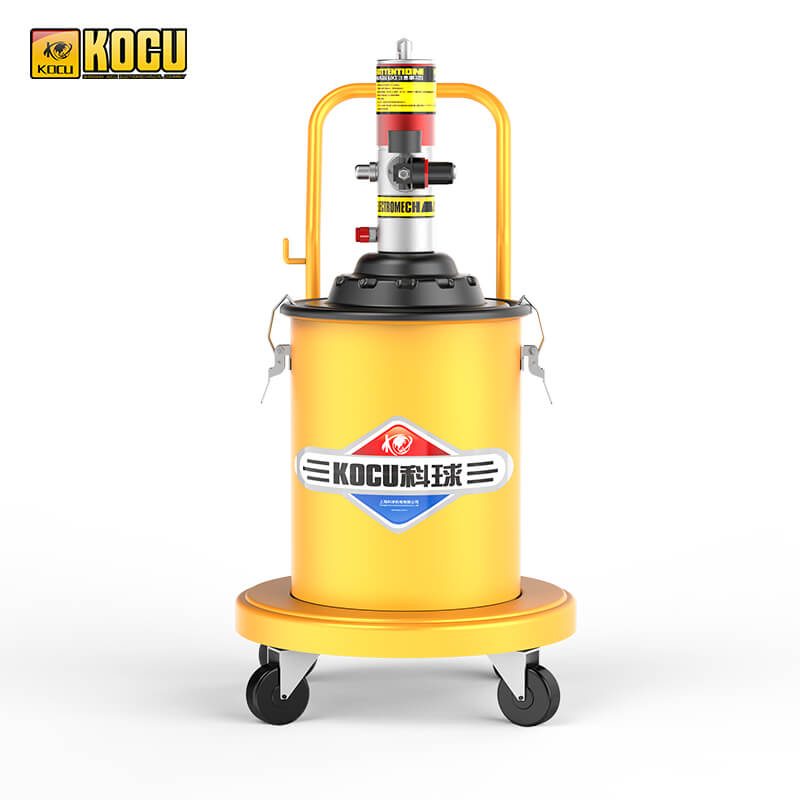

| Model: GZ-9T | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 20L | ||
| Weight: 16.9Kg | ||
| Packing size: 450*450*840mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

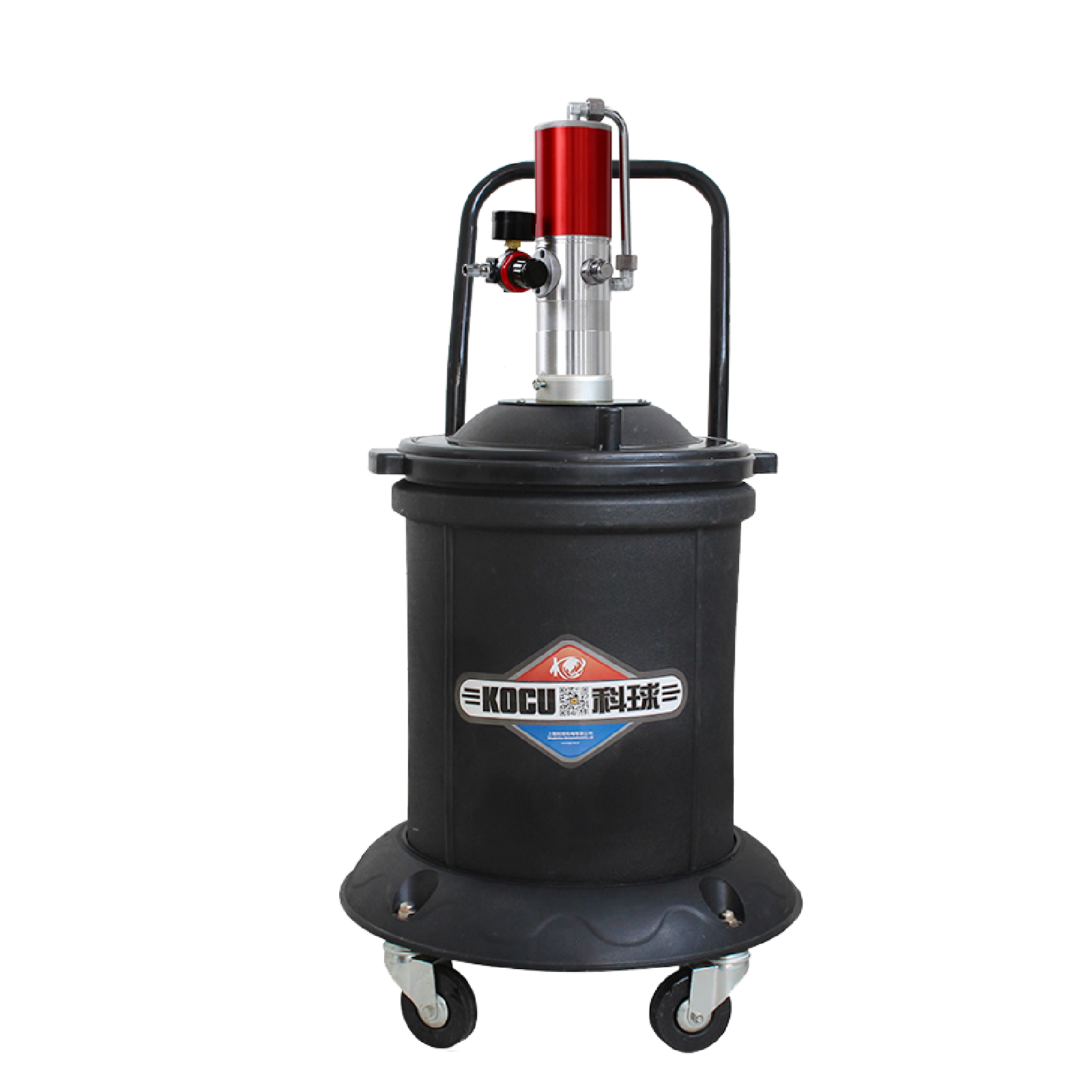

| Model: GZ-9 | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 30L | ||
| Weight: 19Kg | ||
| Packing size: 460*460*910mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

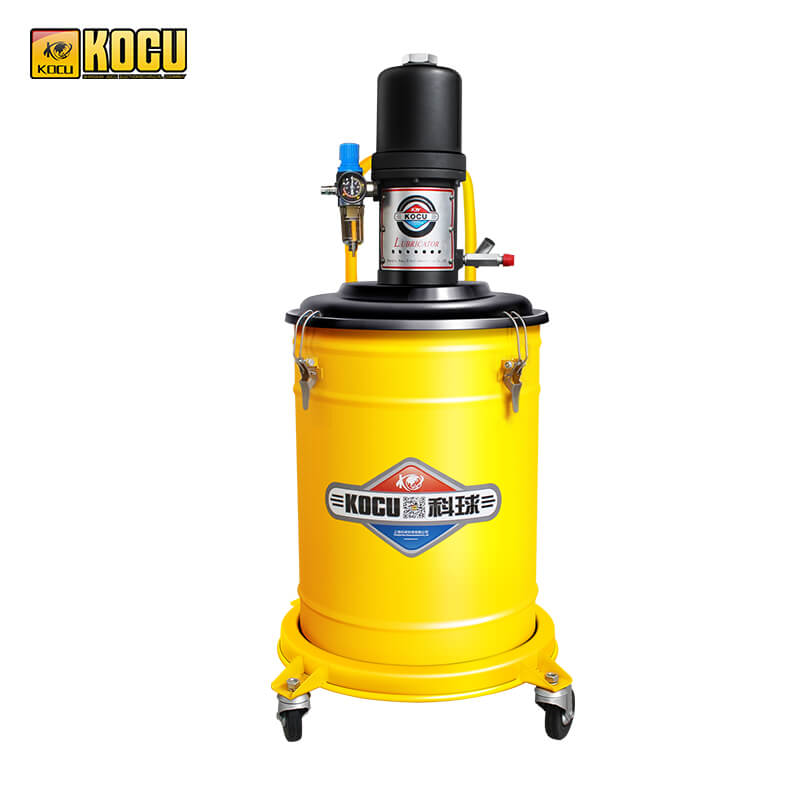

| Model: GZ-85B | ||
| Pressure level: 40: 1 | ||
| Outlet pressure: 24-32Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.75L/Min | ||
| Volume: 45L | ||
| Weight: 23.85Kg | ||
| Packing size: 910*480*480mm | ||
| Injector gun: HCG-600 | ||
| Pipe: High pressure resistance |

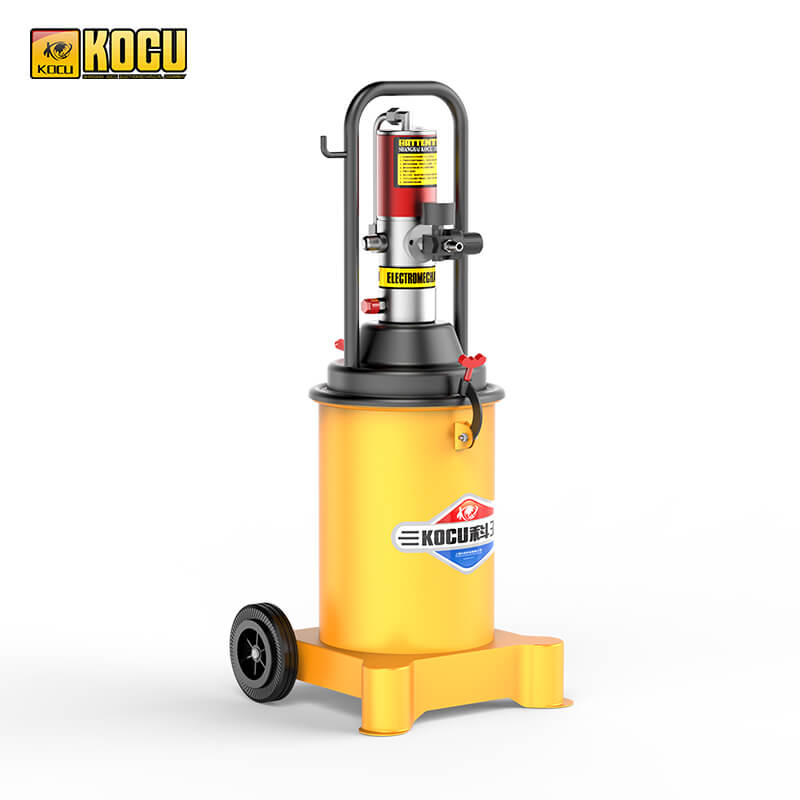

| Model: GZ-8 | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 12L | ||
| Weight: 14Kg | ||
| Packing size: 355*315*840mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |
| Model: GZ-7 | ||
| Pressure level: 50: 1 | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Outlet pressure: 30-40Mpa | ||
| Weight: 15.5Kg | ||
| Packaging size: Pump head: 850*210*120mm Body: 480*480*200mm |
||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

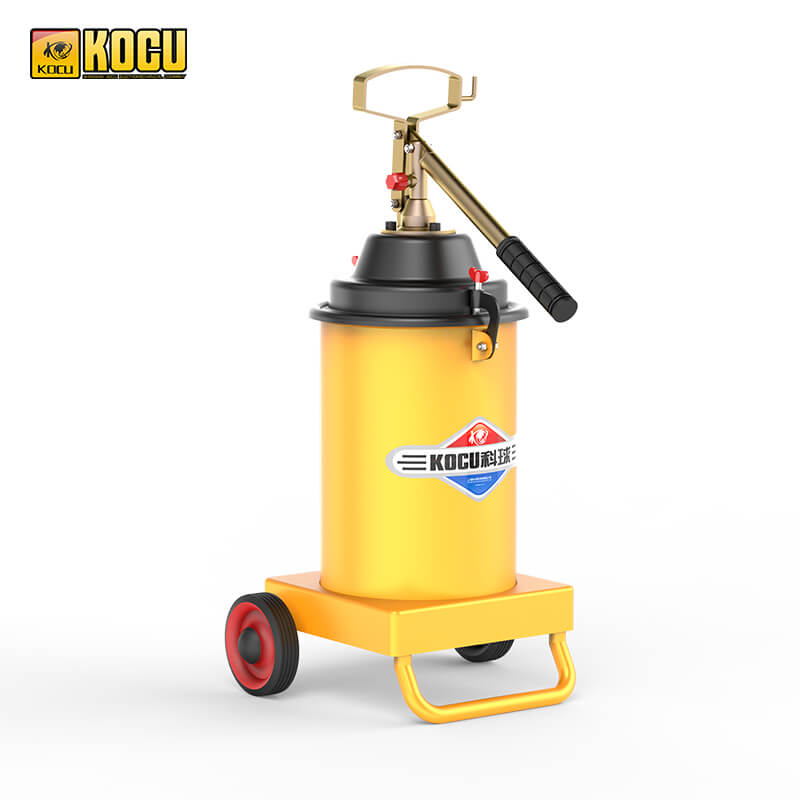

| Model: GZ-6S | ||
| Outgoing pressure: 20-25Mpa | ||
| Flow rate: 0.005kg/one step | ||
| Volume: 12L | ||
| Weight: 9.1Kg | ||
| Packing size: 370*320*660mm | ||
| Injector gun: HCG-100 | ||
| Pipe: High pressure resistance |

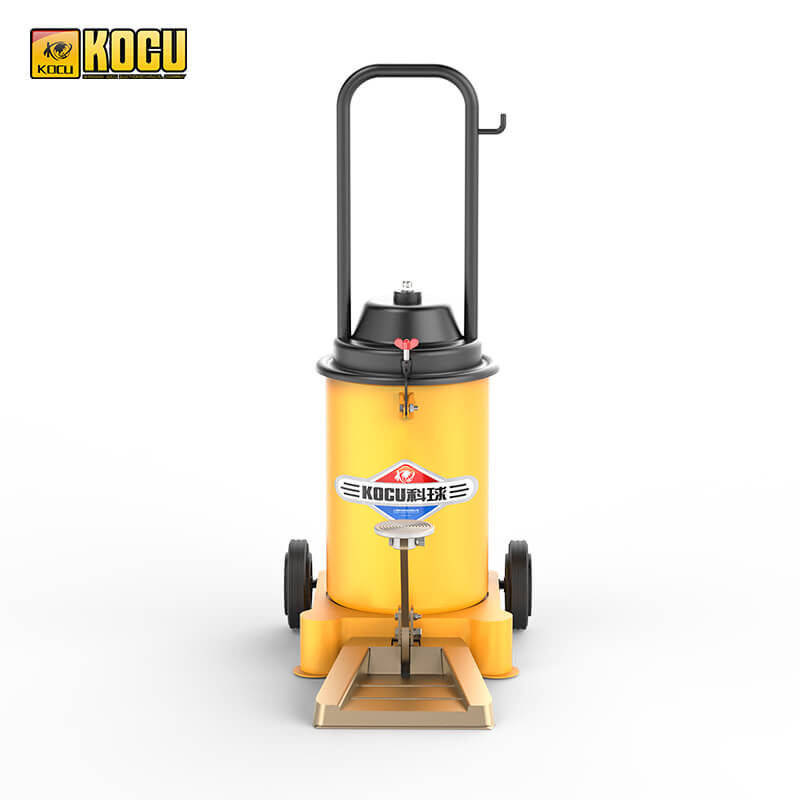

| Model: GZ-6J | ||
| Outgoing pressure: 20-25Mpa | ||
| Flow rate: 0.005kg/one step | ||
| Volume: 12L | ||
| Weight: 11.5Kg | ||
| Packing size: 385*350*520mm | ||
| Injector gun: HCG-100 | ||
| Pipe: High pressure resistance |

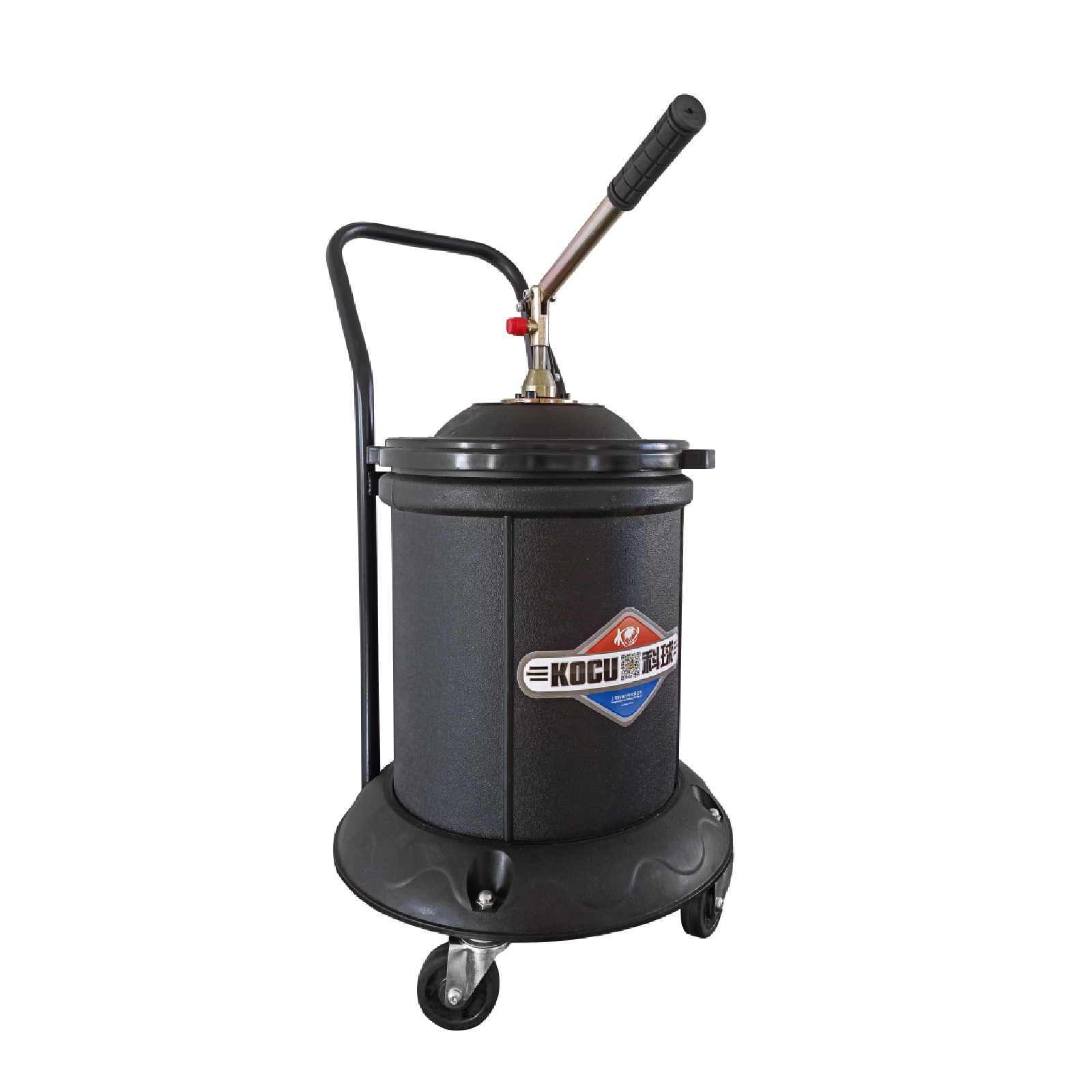

| Model: GZ-30B | ||
| Outgoing pressure: 20-25Mpa | ||
| Flow rate: 0.005kg/one step | ||
| Volume: 30L | ||
| Weight: 12.65Kg | ||
| Packing size: 420*375*710mm | ||
| Injector gun: HCG-100 | ||
| Pipe: High pressure resistance |

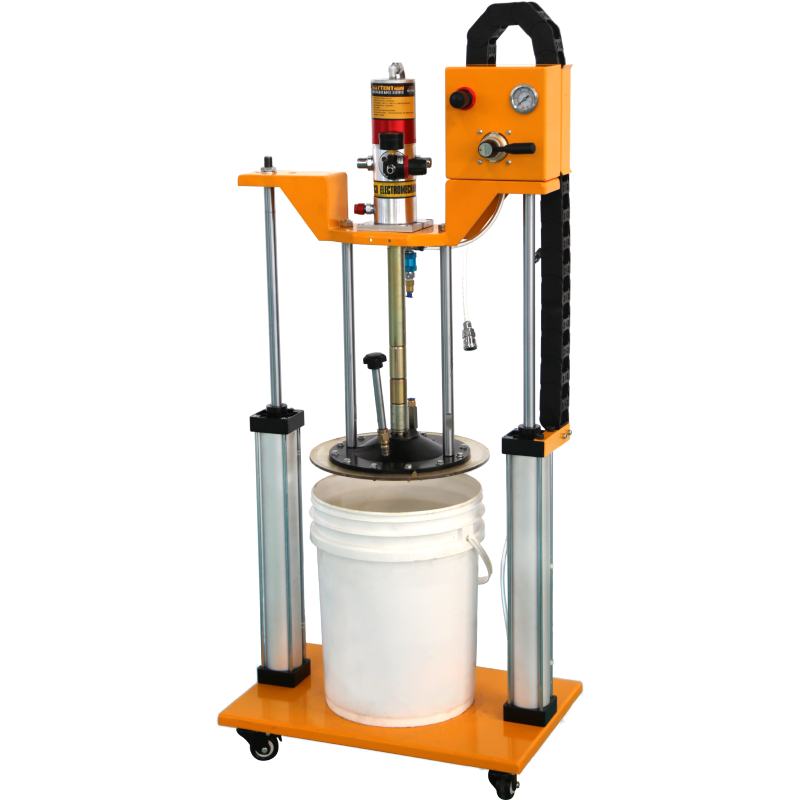

| Model: GZ-308 | ||
| Outlet pressure: 32-40Mpa | ||
| Flow rate: 0.85L/Min | ||
| Air inlet: 0.6-0.8Mpa | ||
| Max stroke: 400mm | ||
| Net weight: 31KG | ||
| Gross weight: 38KG | ||
| Size: 600*400*1000mm |

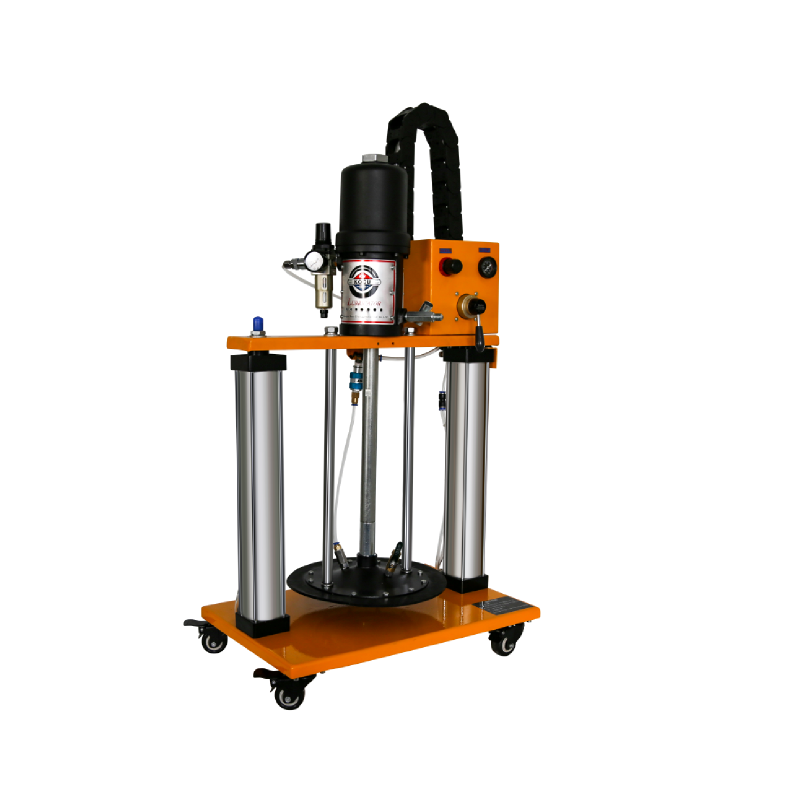

| Model: GZ-302 | ||
| Outlet pressure: 28-36Mpa | ||
| Flow rate: 0.75L/Min | ||
| Air inlet: 0.6-0.8Mpa | ||
| Max stroke: 400mm | ||
| Net weight: 34KG | ||
| Gross weight: 41KG | ||
| Size: 600*400*1000mm |
| Model: GZ-301B | ||
| Outlet pressure: 32-40Mpa | ||
| Flow rate: 0.85L/Min | ||
| Air inlet: 0.6-0.8Mpa | ||
| Max stroke: 450mm | ||
| Net weight: 33KG | ||
| Gross weight: 40KG | ||
| Size: 600*400*1000mm |

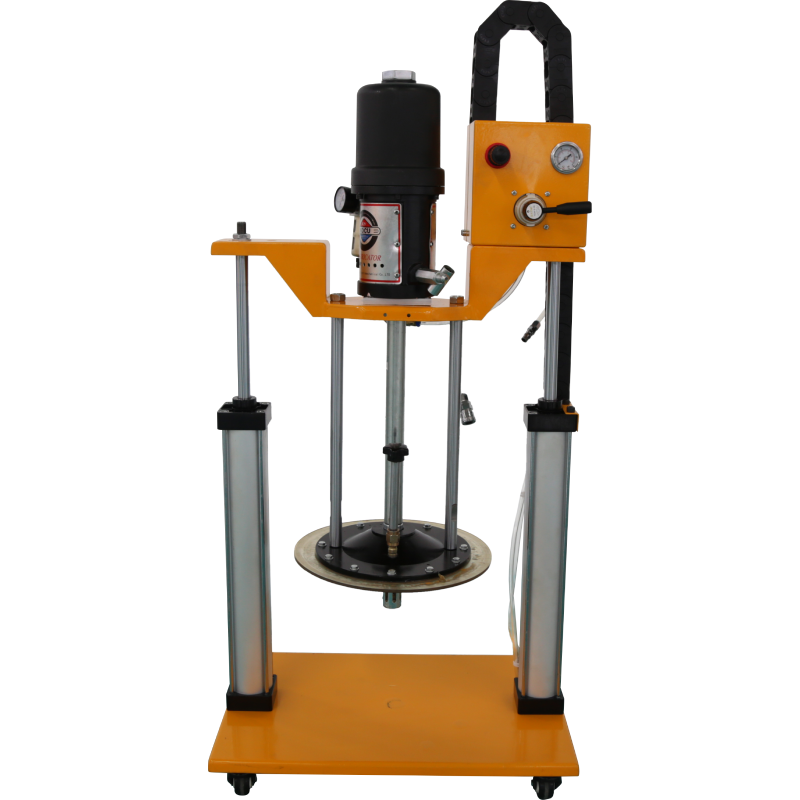

| Model: GZ-301 | ||
| Outlet pressure: 24-32Mpa | ||
| Flow rate: 0.75L/Min | ||
| Air inlet: 0.6-0.8Mpa | ||
| Max stroke: 450mm | ||
| Net weight: 36KG | ||
| Gross weight: 43KG | ||
| Size: 600*400*1000mm |

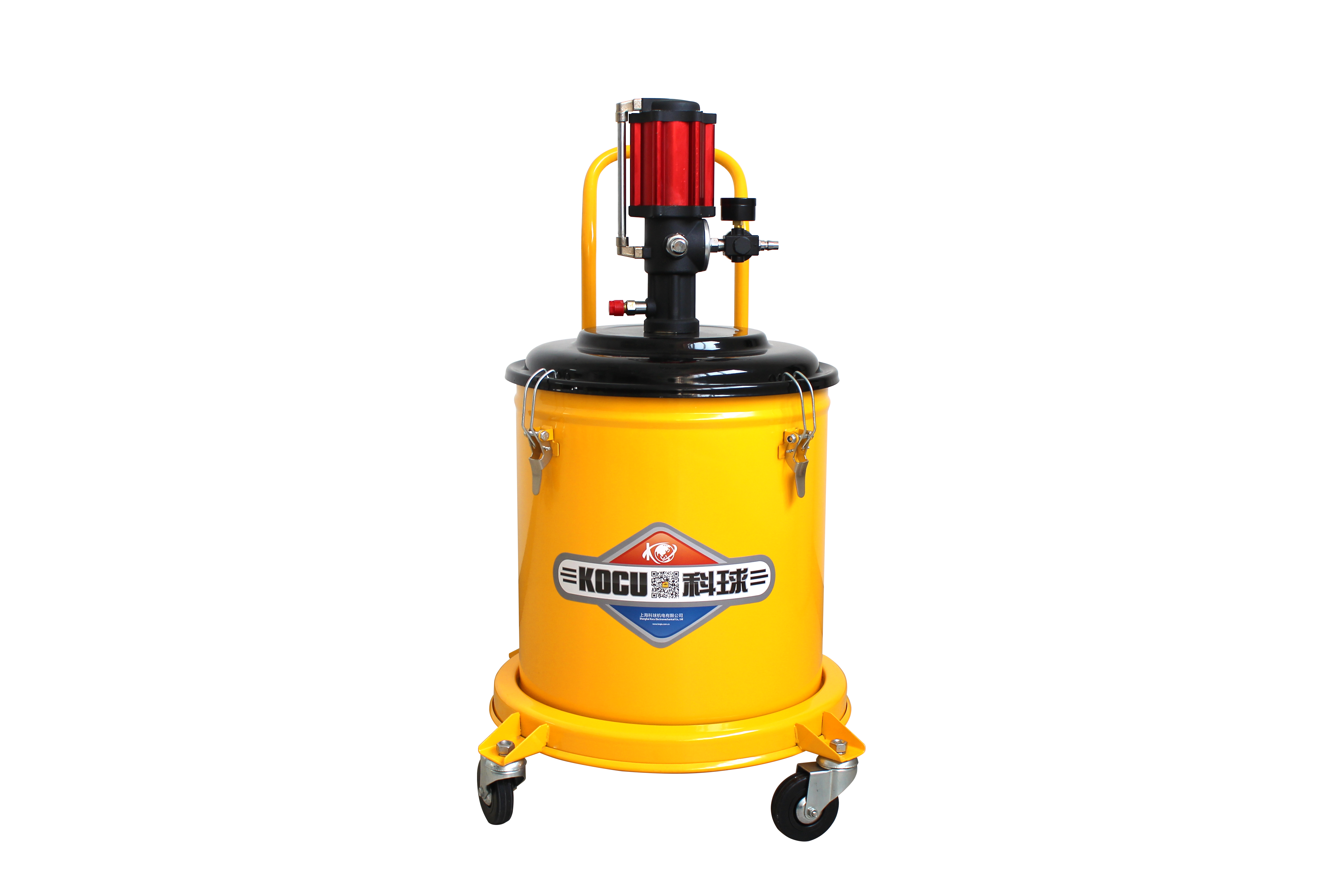

| Model: GZ-300 | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 30L | ||
| Weight: 19.2Kg | ||
| Packing size: 470*470*760mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |
| Model: GZ-3 | ||
| Pressure level: 40: 1 | ||
| Outlet pressure: 24-32Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.75L/Min | ||
| Volume: 12L | ||
| Weight: 12.15Kg | ||
| Packing size: 355*315*840mm | ||
| Injector gun: HCG-150 | ||
| Pipe: High pressure resistance |

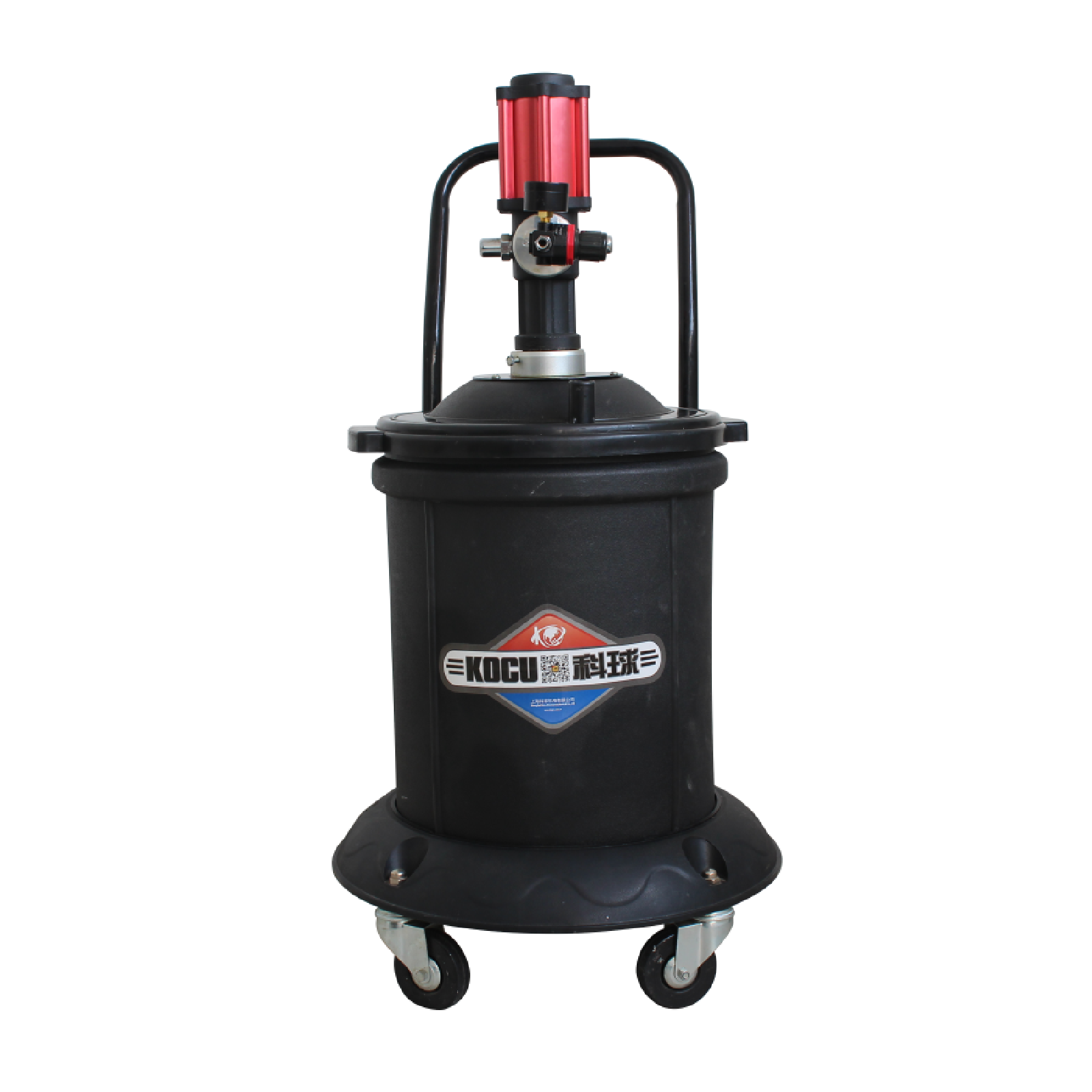

| Model: GZ-200 | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 30L | ||
| Weight: 18.05Kg | ||
| Packing size: 460*460*910mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

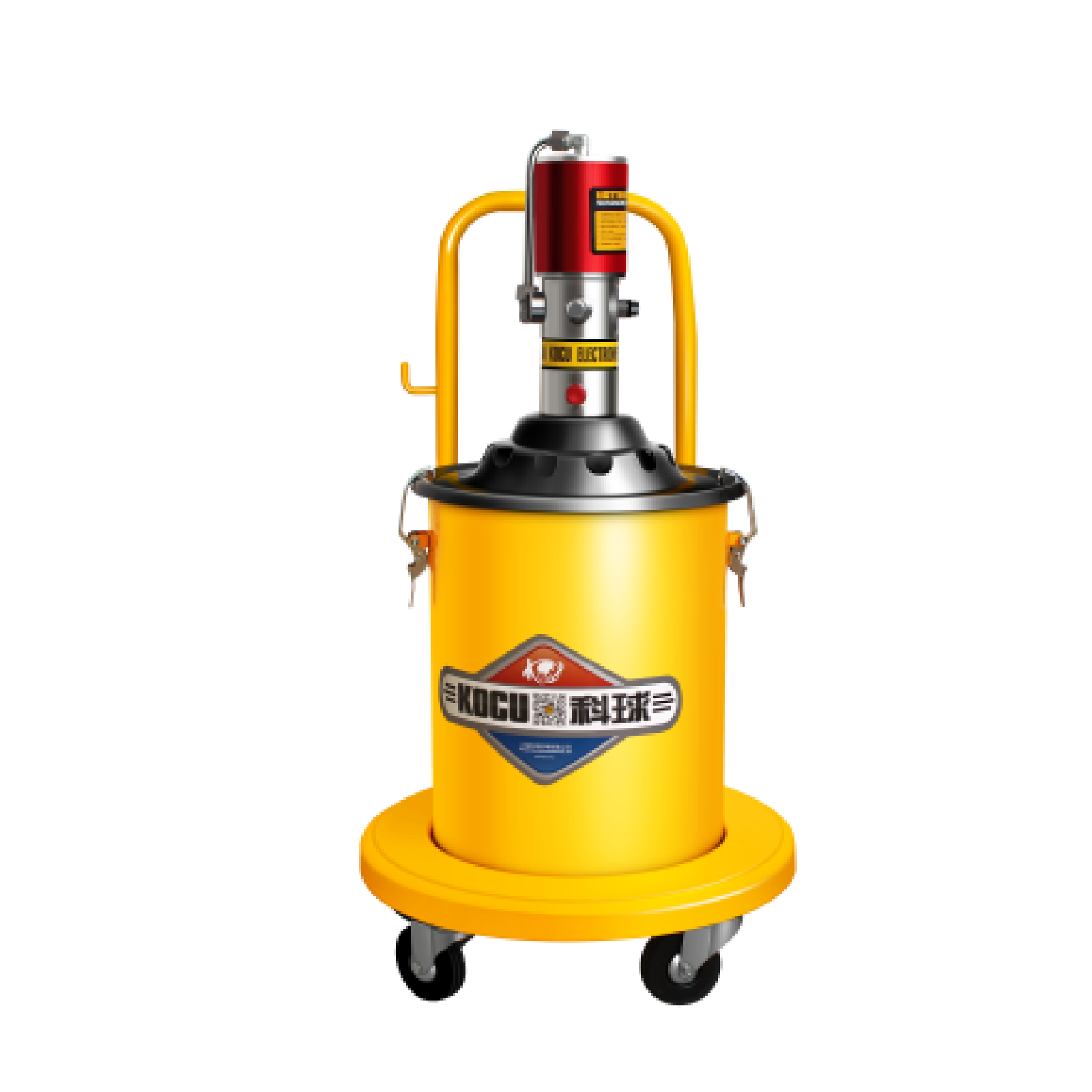

| Model: GZ-150 | ||
| Pressure level: 60: 1 | ||
| Outlet pressure: 36-48Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.9L/Min | ||
| Volume: 20L | ||
| Weight: 16.95Kg | ||
| Packing size: 450*450*840mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |

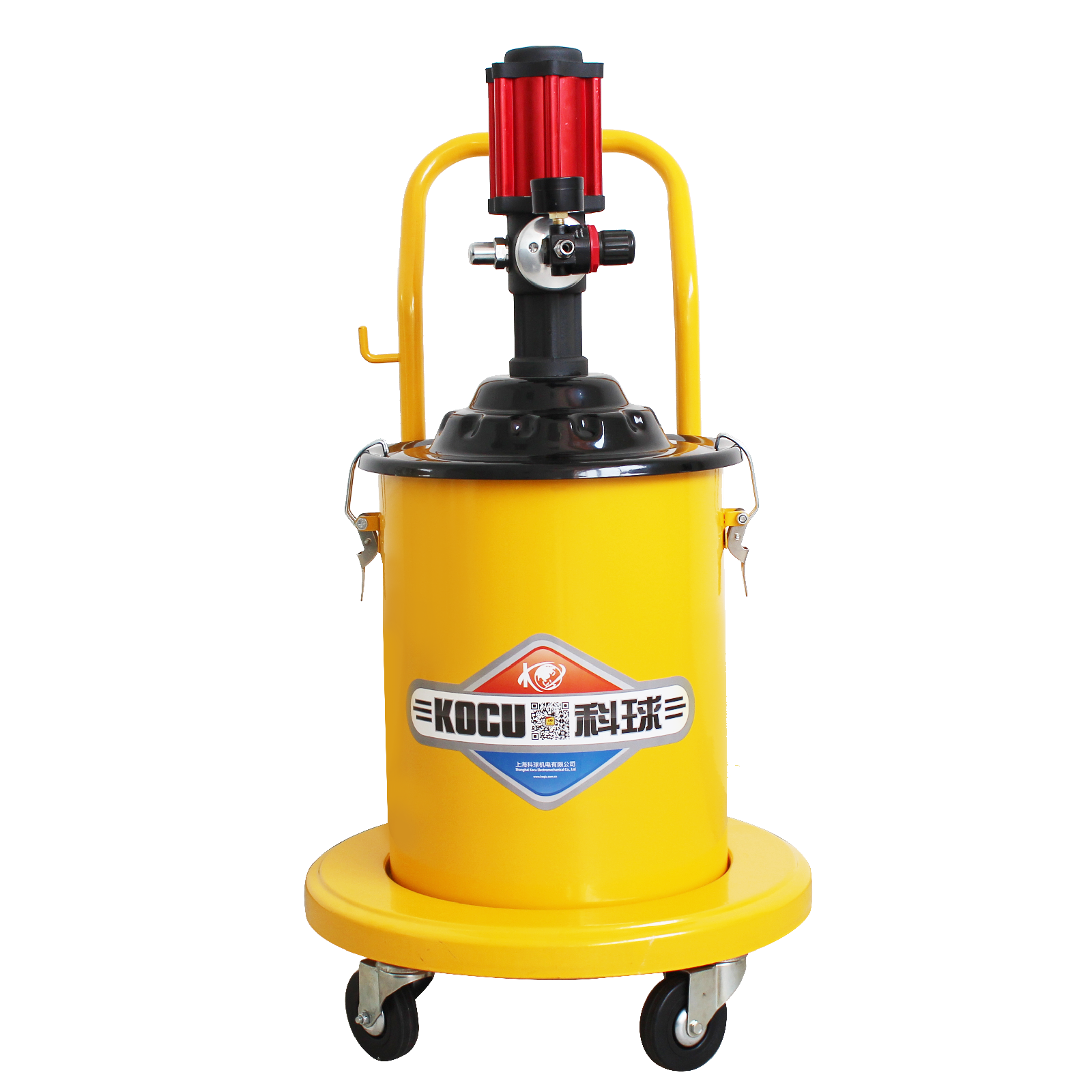

| Model: GZ-100 | ||
| Pressure level: 50: 1 | ||
| Outlet pressure: 30-40Mpa | ||
| Air inlet: 0.6-0.8Mpa | ||
| Flow rate: 0.85L/Min | ||
| Volume: 20L | ||
| Weight: 16.55Kg | ||
| Packing size: 450*450*840mm | ||
| Injector gun: HCG-200 | ||
| Pipe: High pressure resistance |
